GL2801 Series, 600 LBS
GL2801, GL2801R, GL2801S, GL2801SR
Electromagnetic locks are widely used in commercial and industrial applications. The lock is usually mounted on the header above the door and the armature is usually mounted on the door.
BSI provides a full line of electromagnetic locks for all types of doors. Our models are designed to secure any type of door or gate that closes against a fixed stop. All of our locks components are carefully designed, manufactured and tested to ensure superior quality.
Applications
- For outdoor use (water-proof) - all inner components are well sealed and are protected from environmental damages.
- Three meters long power cable for convenient installation
- Horizontal or vertical installation

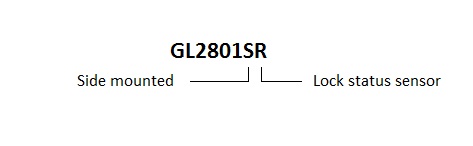

How to order
- Stainless steel housing
- Built-in voltage spike suppressor
- Holding Force : about 600LBS
- Special Finish : Zinc (on the magnet & armature plate)
- Voltage : 12V/24VDC (Selectable)
- Current Draw : 500mA/12V , 250mA /24V
DIMENSION :

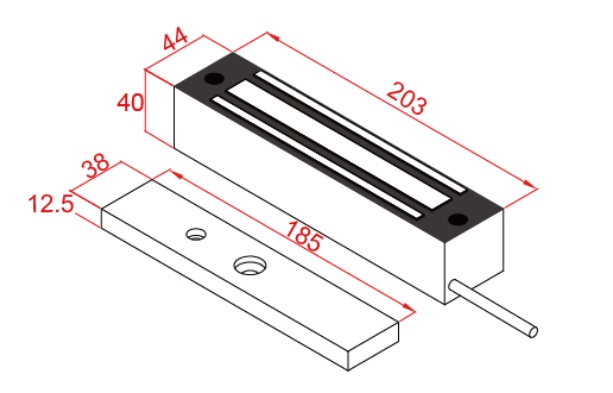

- Magnet (GL2801) : 203L*44W*40H mm
- Armature Plate : 185L*38W*12.5T mm

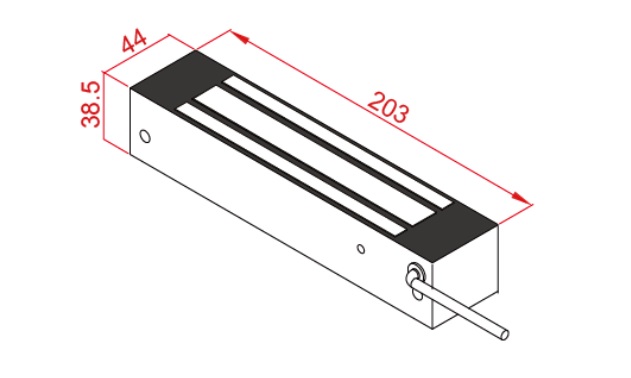

- Magnet (GL2801S) : 203L*44W*38.5H mm
- Magnet (GL2801SR-24V) : 203L*44W*40H mm
