MSL2701 Concealed Mortise
MSL2701, MSL2701H, MSL2701HT, MSL2701H-DS, MSL2701HT-DS
Electromagnetic locks are widely used in commercial and industrial applications. The lock is usually mounted on the header above the door and the armature is usually mounted on the door.
BSI provides full line of electromagnetic locks for all types of doors. Our models are designed to secure any type of door or gate that closes against a fixed stop. All of our locks components are carefully designed, manufactured and tested to ensure superior quality.
Applications
- Suitable for sliding doors
- Selectable material of mounting bracket : steel(default) or aluminum (optional)
- Maglock 600P , Mortice mounted, Basic

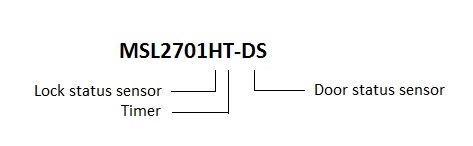

How to order
- Mortice Mounted
- Holding Force : about 600LBS

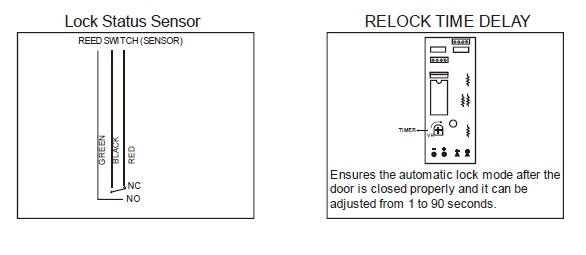

- Built-in voltage spike suppressor
- Special Finish : Zinc (on the magnet & armature plate)
- Voltage : 12V / 24VDC (Selectable)
- Current Draw : 500mA/12V , 250mA /24V

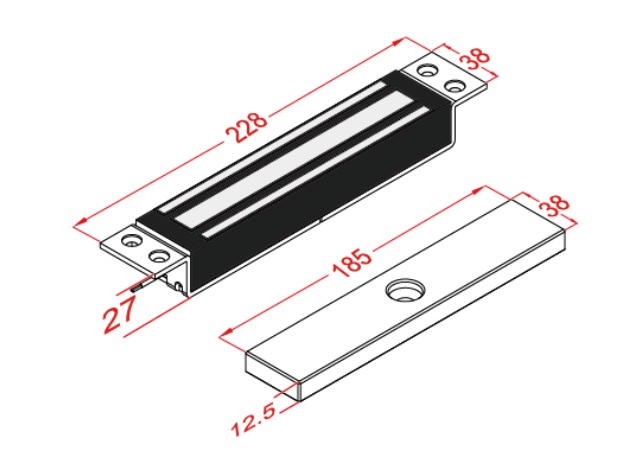

DIMENSION :
- Magnet : 228L*38W*27D mm
- Armature Plate : 185L*38W*12.5T mm
| Description | Files Download |
|---|---|
| CATALOGUE | DSL2700 SERIES |
