DSL2701 Surface Mounted
DSL2701, DSL2701H, DSL2701HT
Electromagnetic locks are widely used in commercial and industrial applications. The lock is usually mounted on the header above the door and the armature is usually mounted on the door.
BSI provides full line of electromagnetic locks for all types of doors. Our models are designed to secure any type of door or gate that closes against a fixed stop. All of our locks components are carefully designed, manufactured and tested to ensure superior quality.
Applications
- Adjustable mounting plate for easy and appropriate installation
- Maglock 600P Basic

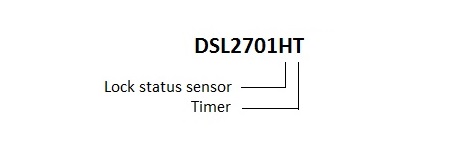

How to order
- Holding Force : about 600LBS
- Built-in voltage spike suppressor ,
- With Bi-color LED
- Adjustable mounting plate for easy and appropriate installation
- Special Finish : Zinc (on the magnet & armature plate)
- Anodized Aluminum housing
- The length can be added according to customer's requests
- Voltage : 12V/24VDC (Selectable)
- Current Draw : 500mA/12V , 250mA /24V

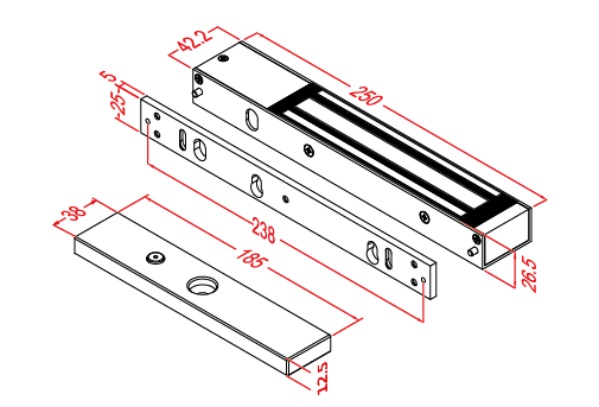

DIMENSIONS:
- Magnet: 250mmLx47.2mmWx26.6mmD
- Armature: 185mmLx38mmWx12.5mmT
| Description | Files Download |
|---|---|
| CATALOGUE | DSL2700 SERIES |
