DSL6150 Surface Mounted
DSL6150, DSL6150H, DSL6150HT, DSL6150H-DS, DSL6150HT-DS
Electromagnetic locks are widely used in commercial and industrial applications. The lock is usually mounted on the header above the door and the armature is usually mounted on the door.
BSI provides a full line of electromagnetic locks for all types of doors. Our models are designed to secure any type of door or gate that closes against a fixed stop. All of our locks components are carefully designed, manufactured and tested to ensure superior quality.
Applications
- Horizontal or vertical installation
- Magnetic lock for 1500LBS

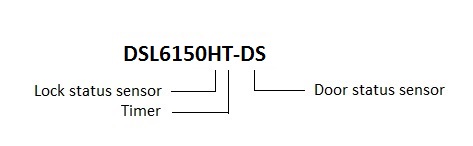

How to order
- Special mounting plate for fast, effort-saving, and simple installation
- Holding Force : about 1500LBS
- Built-in voltage spike suppressor
- With Bi-color LED
- Special Finish : Zinc (on the magnet & armature plate)
- Anodized aluminum housing
- Adjustable mounting plate for easy and appropriate installation
- No residual magnetism
- Timer: 0-90 seconds
- Voltage : 12V/24VDC (Selectable)
- Current Draw : 600mA/12V , 300mA /24V

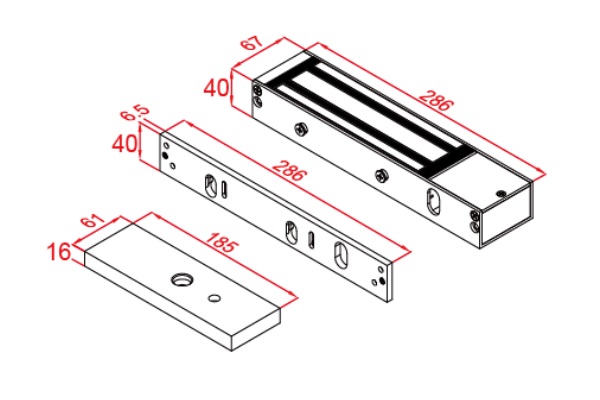

DIMENSION :
- Magnet : 286mmL*73.5mmW*40mmD
- Armature Plate : 185mmL*61mmW*16mmT
