DSL5502 Surface Mounted

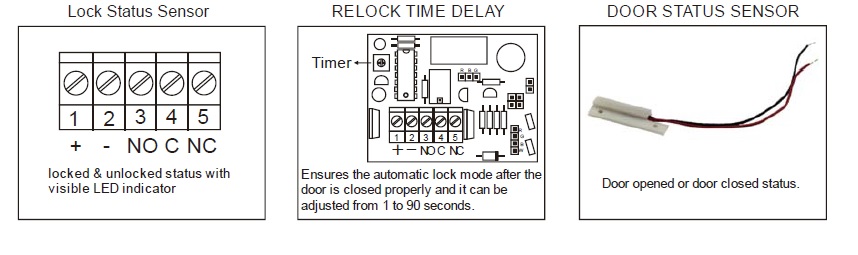

DSL5502, DSL5502H, DSL5502HT, DSL5502H-DS, DSL5502HT-DS
Electromagnetic locks are widely used in commercial and industrial applications. The lock is usually mounted on the header above the door and the armature is usually mounted on the door.

BSI provides full line of electromagnetic locks for all types of doors. Our models are designed to secure any type of door or gate that closes against a fixed stop. All of our locks components are carefully designed, manufactured and tested to ensure superior quality.

Applications

  • Horizontal or vertical installation
  • Magnetic lock for 1200LBS

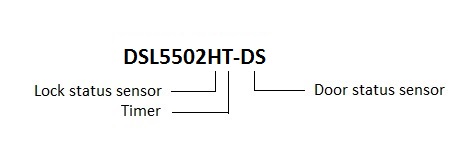

How to order


  • Special mounting plate for fast , effort-saving, and simple installation
  • Anti-dismounting and Anti-falling function
  • Holding Force : about 1200 LBS
  • Built-in voltage spike suppressor
  • Special Finish : Zinc (on the magnet & armature plate )
  • With Bi-color LED
  • Anodized aluminum housing
  • Adjustable mounting plate for appropriate and easy installation
  • The length can be added according to customer's request



  • Voltage : 12V / 24VDC (Selectable)
  • Current Draw : 500mA/12V , 250mA /24V

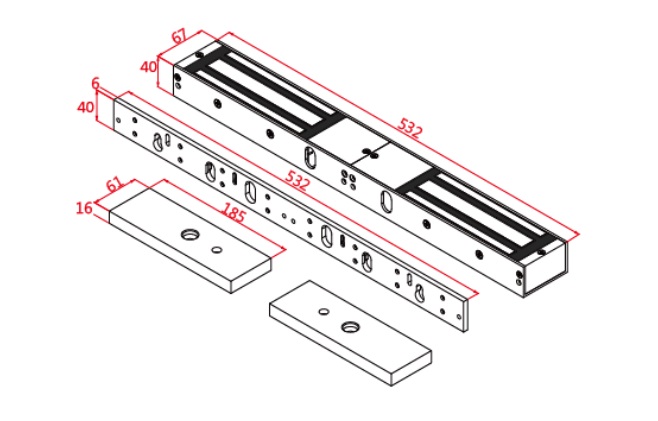

DIMENSION :

  • Magnet : 532mmL*73mmW*40mmD
  • Armature Plate : 185mmL*61mmW*16mmT

Description Files Download
